Description

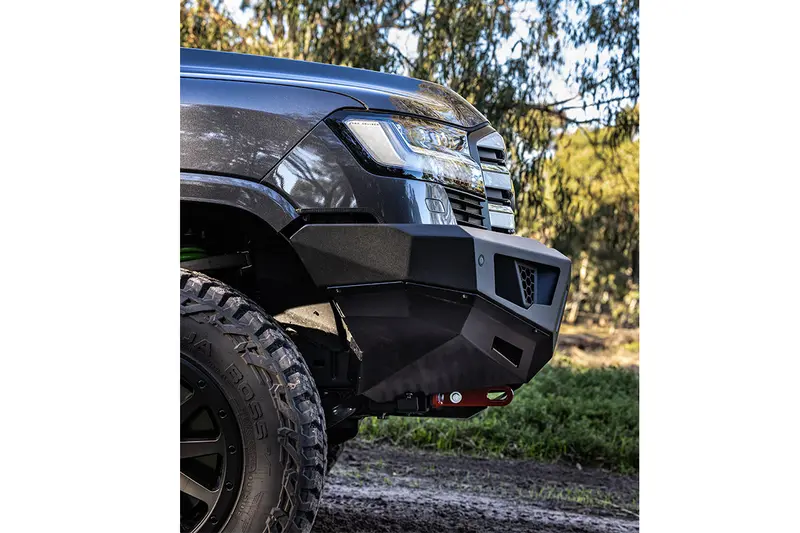

Where form truly meets function. The Raid series of bull bars are a great option for those who appreciate sharp looks, while still achieving improved approach angles, greatly improved frontal protection, light mounting & full winch compatibility. A sleek urban design, with the toughest of tough-track capability.
12,000LB WINCH COMPATIBLE
Industry standards recommend a winch that’s at least 1.5 times of your vehicle & with up to a GVM from 3060kg to 3300kg, the Landcruiser will require a winch that can pull at least 10,900lb. That’s why we’re ensured the Raid bull bar is compatible with a 12,000lb winch.
INCLUDED RECOVERY POINTS
We think recovery points are so important, we’ve included them in the bull bar. The recovery points are manufactured from 16mm steel, featuring non-abrasive radius edges and an elongated hole for different types of shackles. Plus they’re powder coated red for high visibility & are rated to 5-tonne (per point).
SAFETY IS A PRIORITY
Ironman 4×4’s Raid series program incorporates all factory OEM safety features. Safety is not limited to the factory features. Ironman 4×4 performs in house FEA & ADR compliance testing & complies with all state & territory regulations, meeting industry standards.
LIGHTING PROVISIONS
Provision for centre light bar, 20W cubes or indicator/parker cubes.
Select Light kit to include 4 x 20W cube lights ILED20B/ILED20BA, 32″ Ironman 120W Light bar ILBSR002BW with wiring looms IDLWL001/IDLWL007C/IPLS090.
KEYS FEATURES
- Winch cradle mounted directly to the chassis for the strongest & safest possible winching platform for the harshest recovery situations
- The bull bar is made from 3mm steel & the winch cradle is made from 5mm steel
- Winch cradle with included clutch handle access & line visibility
- Included two 5-tonne recovery points & 4mm skid plate
- Provision for light bar, cube or fog lights
- Provision for 7″ or 9″ Scope lights on top of bar
- Vehicle safety features maintained with radar compatibility featured in the newer models
SPECIFICATIONS
| WINCH COMPATIBILITY | Compatible with up to 12,000lb winches. Hidden Control box mount (WWBCP001) & Winch extension cable (WWB032) included when winch selected in drop down. |
| LIGHT MOUNTS |
Provisions for 4 x 20W Cube Lights or Indicator/Parker cube lights. Provision for LED Light bar. |
| RECOVERY POINTS | Yes |
| ADR COMPLIANT | Yes |
| RADAR & AIRBAG COMPATIBLE | Yes |
| BUMPER REPLACEMENT | Bumper cut required |
| POWDER COATING | Matte Black Textured Powder coated Finish |
