Description

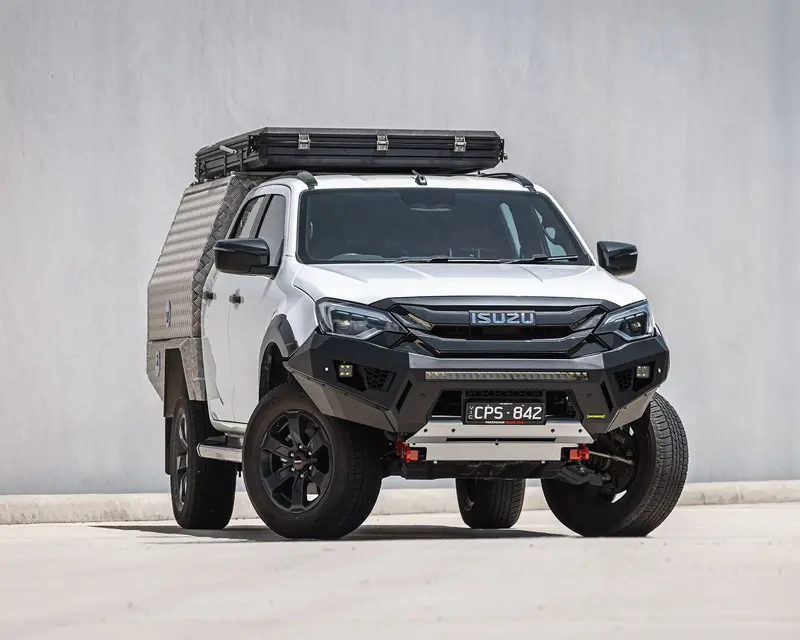

Where form truly meets function; the Raid bull bar to suit the Isuzu D-MAX is a great option for those who appreciate sharp looks, while still achieving improved approach angles and greatly improved frontal protection with light mounting and full winch compatibility. A sleek urban design, with the toughest of tough-track capabilities.
12,000LB WINCH COMPATIBLE
Industry standards recommend a winch that’s at least 1.5 times the weight of your vehicle, and with a standard GVM of 3100kg, the D-MAX demands nothing less than a 10,250lb winch. That’s why, we’ve ensured the Raid bull bar to suit the Isuzu D-MAX is compatible with a 12,000lb winch.
RECOVERY POINTS INCLUDED
We think recovery points are so important, we’ve included them in the Raid bull bar. The recovery points are manufactured from 16mm steel, featuring non-abrasive radius edges and an elongated hole for different types of shackles. Plus, they’re powder-coated red for high visibility and rated to 5-tonne (per point).
WINCH CRADLE MOUNTED DIRECTLY TO CHASSIS
For the strongest and safest possible winching platform for the harshest recovery situations.
SAFETY IS A PRIORITY
Ironman 4×4’s Raid series program incorporates all factory OEM safety features. Safety is not limited to the factory features, Ironman 4×4 performs in-house FEA testing and has all bar work tested for ADR compliance. Ironman 4×4 bar work complies with all state and territory regulations to meet industry standards.
LIGHTING PROVISIONS
Provision for centre light bar, 20W cubes or indicator/parker cubes.

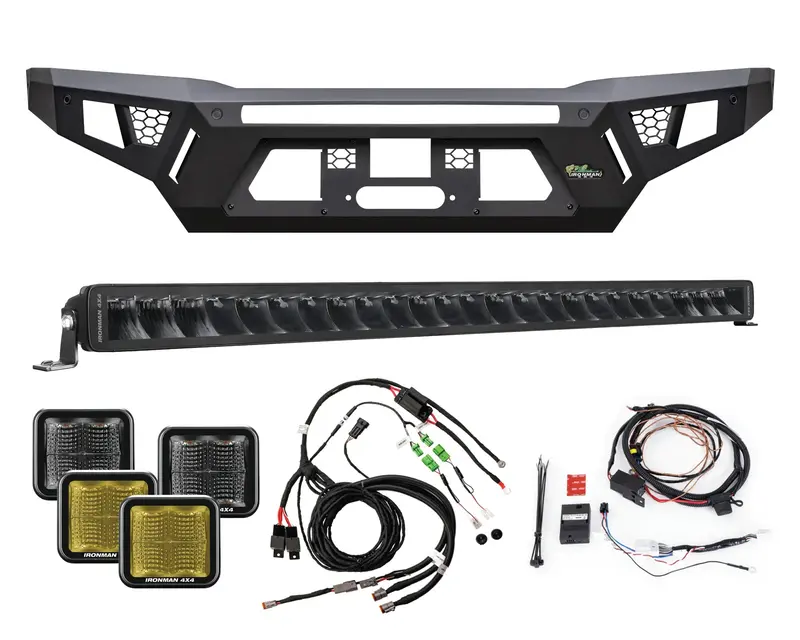

Select Light kit to include 4 x 20W cube lights ILED20B/ILED20BA, 32″ Ironman 120W Light bar ILBSR002BW with wiring looms IDLWL001/IDLWL007C/IPLS124.
SPECIFICATIONS
| WINCH COMPATIBILITY |
Compatible with up to 12,000lb winches. Hawse only. Hidden winch mount optional |
| RECOVERY POINTS | Included – 16mm Rated Recovery Points |
| NUMBER PLATE LOCATION | Flip-up Number Plate Bracket Provided |
| LIGHT BAR SLOT | Provision for optional 32″ Bright Sabre Single Row Light Bar. Included mesh infill panel for when a light bar is not installed. |
| FOG LIGHTS OR CUBE LIGHT OPTIONS | Provisions for optional 20W Bright Cube Lights to be mounted to the two Inner Light Pods for off road use only or customize & mix with indicator/parker cubes. |
| ADR COMPLIANT | Complies with all State and Territory Requirements |
| AIRBAG COMPATIBLE |
Yes |
| SENSOR & RADAR COMPATIBLE |
Yes |
| STEEL THICKNESS | 3mm Bull Bar Body, 5mm Winch Cradle Bracket and 4mm Skid Plate |
| POWDER COATING | Matte Black Textured Finish |
Fitting:
Price does not include fitting or shipping costs. Please process your order then contact our shop on 03 8746 0340.
