Description

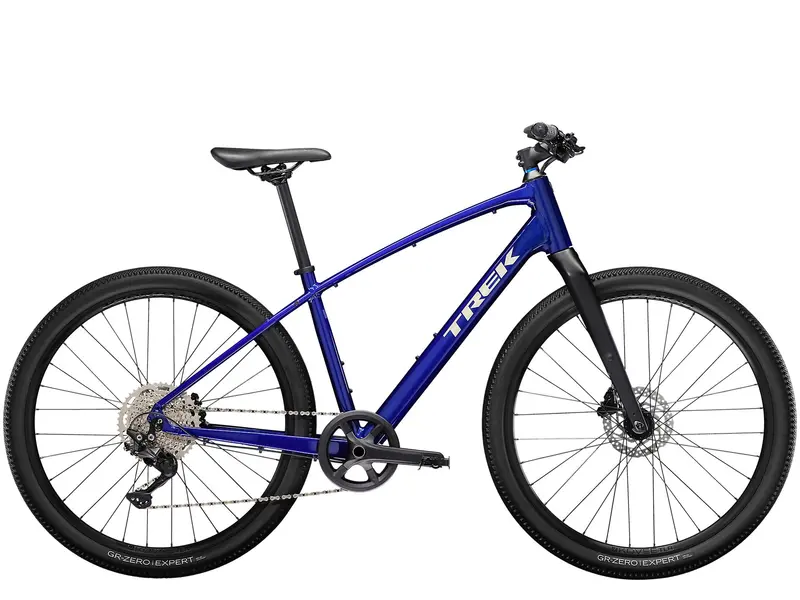

Dual Sport 3 is high performance, go-anywhere hybrid bike that transitions from pavement to rougher terrain with ease. It has a light frame and a low-maintenance 1x drivetrain with a wide range of gears. Its wide Bontrager Kovee wheels and lofty gravel tires soak up bumps and rough terrain for a comfortable, confident ride on pavement, rail trails, and light dirt paths.
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 – 155 cm 4’10” – 5’1″ |
69 – 73 cm 27″ – 29″ |
| S |
155 – 165 cm 5’1″ – 5’5″ |
72 – 78 cm 28″ – 31″ |
| M |
165 – 175 cm 5’5″ – 5’9″ |
77 – 83 cm 30″ – 33″ |
| L |
175 – 186 cm 5’9″ – 6’1″ |
82 – 88 cm 32″ – 35″ |
| XL |
186 – 197 cm 6’1″ – 6’6″ |
87 – 93 cm 34″ – 37″ |
Frameset
| Frame | Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount. 135x5mm QR |
|---|---|
| Fork | Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5×100 mm QR |
|---|---|
| Skewer front | 139x5mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR |
| Skewer rear | 152x5mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tire | Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c |
| Max tire size | 27.5×2.0″ |
Drivetrain
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| *Crank | Size: S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length |
| Size: L, XL Prowheel alloy, 40T narrow-wide ring, 175 mm length |
|
| Cassette | Shimano Deore M4100, 11-46, 10 speed |
| Chain | KMC X10, 10 speed |
| Pedal | Wellgo nylon body, alloy cage |
| Max chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager H1 |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |
| *Handlebar | Size: S Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 600mm width |
| Size: M, L Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 660mm width |
|
| Size: XL Bontrager Comp Lowriser, alloy, 31.8mm, 15mm rise, 690mm width |
|
| Grips | Bontrager XR Endurance Elite |
| *Stem | Size: S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: M, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Brake | Shimano hydraulic disc, MT201 lever, UR300 caliper |
| Brake rotor | Shimano RT26, 6-bolt,160 mm |
| Rotor size | Max brake rotor size: 160mm |
Weight
| Weight | M – 11.88 kg / 26.2 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
