Description

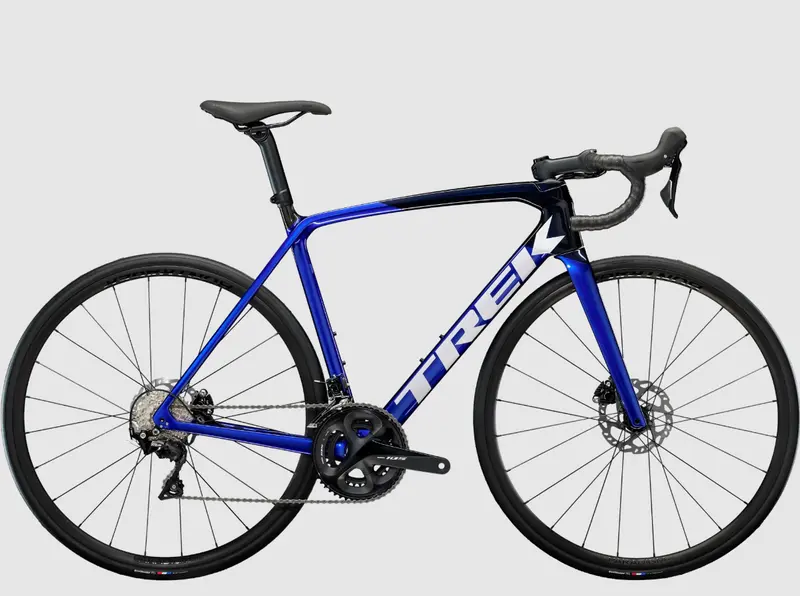

Émonda SL 5 Disc is a lightweight carbon road bike with a balanced ride quality, superior handling characteristics, and the added benefit of free speed thanks to aero tube shaping. It’s a great choice for century rides on hilly terrain, windy flats, and speedy descents.
Frameset
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle |
| Frame fit | H1.5 Race |
Wheels
| Hub front | Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm |
| Max tire size | 28mm |
Drivetrain
| *Shifter | Size: 47, 50, 52 Shimano 105 R7025, short-reach lever, 11 speed |
|---|---|
| Size: 54, 56, 58, 60, 62 Shimano 105 R7020, 11 speed |
|
| Front derailleur | Shimano 105 R7000, braze-on |
| Rear derailleur | Shimano 105 R7000, short cage, 30T max cog |
| *Crank | Size: 47 Shimano 105 R7000, 50/34 (compact), 165mm length |
| Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170mm length |
|
| Size: 54, 56, 58 Shimano 105 R7000, 50/34 (compact), 172.5mm length |
|
| Size: 60, 62 Shimano 105 R7000, 50/34 (compact), 175mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 R7000, 11-30, 11 speed |
| Chain | Shimano 105 HG601, 11 speed |
| Max chainring size | 1x: 50T, 2x: 53/39 |
Components
| *Saddle |
Size: 47, 50, 52 Size: 47, 50, 52 |
|---|---|
|
Size: 54, 56, 58, 60, 62 Size: 54, 56, 58, 60, 62 |
|
| *Seatpost | Size: 47, 50, 52, 54 Bontrager alloy seatmast cap, 10mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager alloy seatmast cap, 10mm offset, tall length |
|
| *Handlebar | Size: 47, 50 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width |
| Size: 52 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width |
|
| Size: 54, 56, 58 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width |
|
| Size: 60, 62 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 47 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length |
| Size: 50 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
|
| Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Size: 56 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
| Size: 58, 60, 62 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
| Brake | Shimano 105 hydraulic disc, flat mount |
| Brake rotor | Shimano RT70, centerlock, 160mm |
