Description

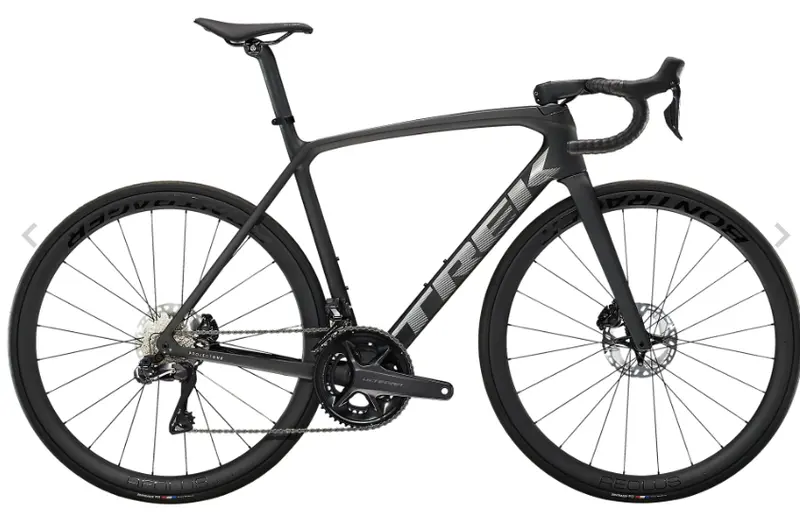

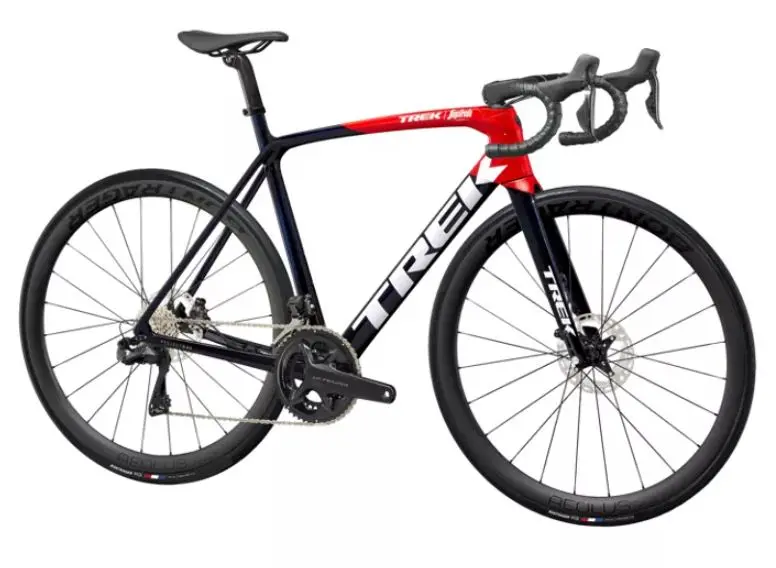

Émonda SLR 7 碟煞是一款超輕空氣動力學碳纖維公路車，其設計和製造使它成為TREK製造過的最快的爬坡自行車。 由最輕的 OCLV 碳纖維所打造的空氣動力學管型，獲得最輕系列提供的傳奇版的騎行質量，外加更快的速度。 您也可以感受無線電子 Shimano Ultegra Di2 傳動系統的快速精確換檔。
Frameset
| Frame | Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle |
|---|---|
| Fork | Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12×100 mm thru-axle |
| Frame fit | H1.5 Race |
Weight
| Weight | 56 – 7.10 kg / 15.66 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
E-system
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |
Drivetrain
| Shifter | Shimano Ultegra R8170 Di2, 12-speed |
|---|---|
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: 47 Shimano Ultegra R8100, 52/36, 165 mm length |
| Size: 50, 52 Shimano Ultegra R8100, 52/36, 170 mm length |
|
| Size: 54, 56, 58 Shimano Ultegra R8100, 52/36, 172.5 mm length |
|
| Size: 60, 62 Shimano Ultegra R8100, 52/36, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| *Cassette | Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8100, 11-30, 12 speed |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano Ultegra R8101, 11-30, 12 speed |
|
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
Wheels
| *Wheel front | Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100 x 12 mm thru axle |
|---|---|
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 100×12 mm thru axle |
|
| *Wheel rear | Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth, 142 x 12mm thru axle |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless-Ready, 37 mm rim depth, Shimano 11-speed freehub, 142×12 mm thru axle |
|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700×25 mm |
| Max tyre size | 28mm |
Components
| *Saddle | Size: 47, 50, 52 Bontrager Aeolus P2 Elite, 155 mm width |
|---|---|
| Size: 54, 56, 58, 60, 62 Bontrager Aeolus Elite, austenite rails, 145 mm width |
|
| *Seatpost | Size: 47, 50, 52, 54 Bontrager carbon seat mast cap, 20 mm offset, short length |
| Size: 56, 58, 60, 62 Bontrager carbon seat mast cap, 20 mm offset, tall length |
|
| *Handlebar/stem (integrated) | Size: 47, 50 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width, 80 mm stem length |
| Size: 47, 50 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width, 80 mm stem length |
|
| Size: 52 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length |
|
| Size: 52 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length |
|
| Size: 54 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 90 mm stem length |
|
| Size: 54 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 90 mm stem length |
|
| Size: 56 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length |
|
| Size: 56 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length |
|
| Size: 58 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 110 mm stem length |
|
| Size: 58 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 110 mm stem length |
|
| Size: 60, 62 Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length |
|
| Size: 60, 62 Bontrager Aeolus RSL integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| Brake | Shimano Ultegra hydraulic disc |
| *Brake rotor | Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano MT800, CentreLock, 160 mm |
| Size: 47, 50, 52, 54, 56, 58, 60, 62 Shimano CL800, CentreLock, 160 mm |
|
| Rotor size | Max brake rotor sizes: 160mm front & rear |
