Description
Frameset

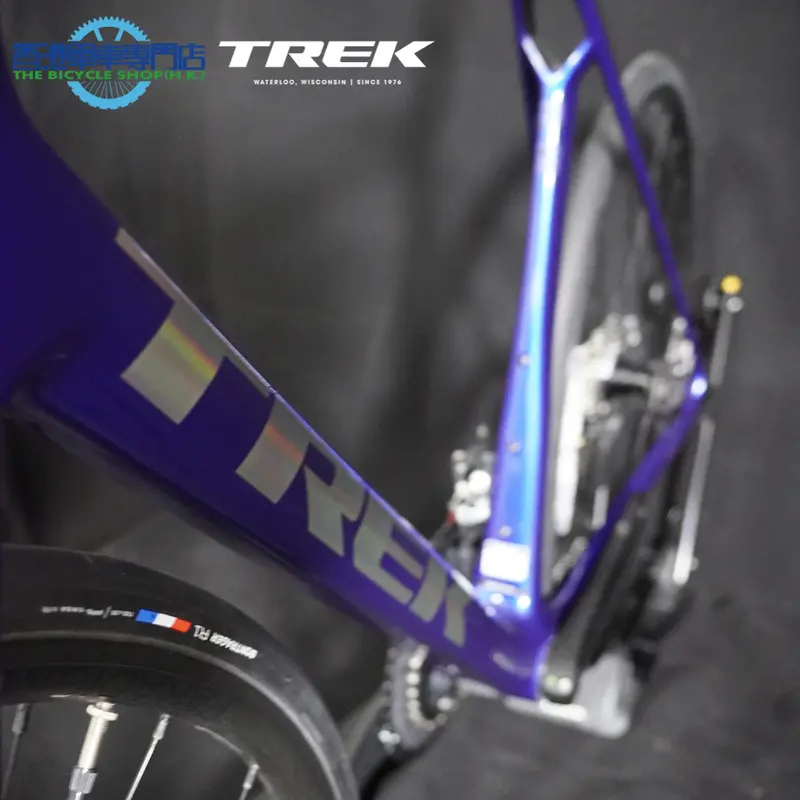

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Weight
| Weight | ML – 8.70 kg / 19.19 lbs (with tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain
| Shifter | Shimano 105 R7120, 12-speed |
|---|---|

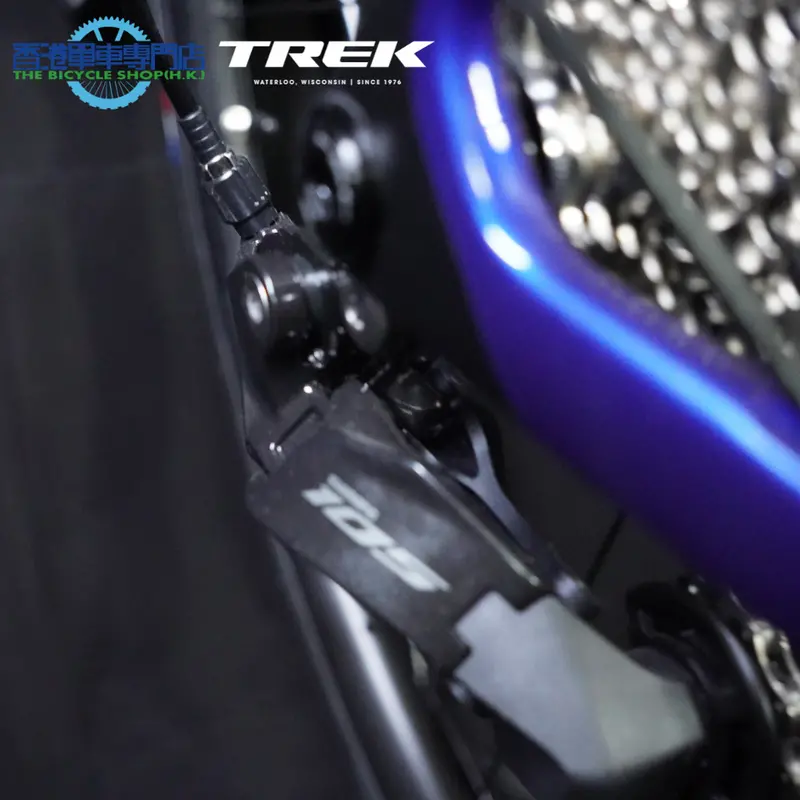

| Front derailleur | Shimano 105 R7100, braze-on, down swing |
| Rear derailleur | Shimano 105 R7100, 36T max cog |
| *Crank | Size: XS, S Shimano 105 R7100, 50/34, 165 mm length |
| Size: M Shimano 105 R7100, 50/34, 170 mm length |
|
| Size: ML, L Shimano 105 R7100, 50/34, 172.5 mm length |
|
| Size: XL Shimano 105 R7100, 50/34, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
Wheels
| Hub front | Bontrager alloy, sealed bearing, CenterLock disc, 100×12 mm thru axle |
|---|---|
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Hub rear | Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Rim | Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700×28 mm |
| Max tyre size | 32 mm (as measured, see manual for details) |
Components
| *Saddle | Size: XS, S Bontrager Aeolus Comp, steel rails, 155 mm width |
|---|---|
| Size: XS, S, M, ML, L, XL Verse Short, steel rails, 145 mm width |
|
| Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, 145 mm width |
|
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length |
|

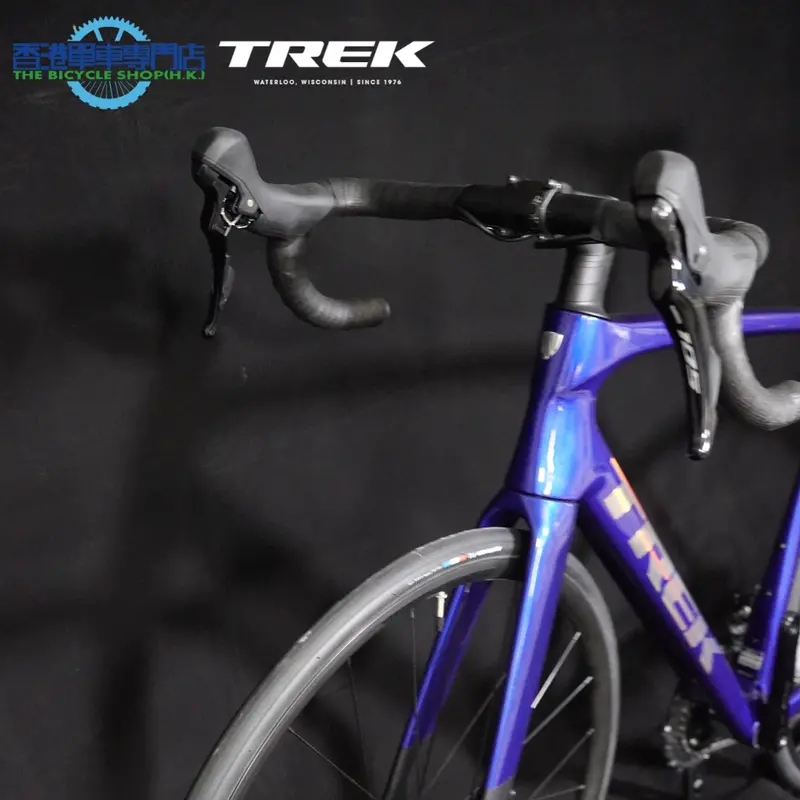

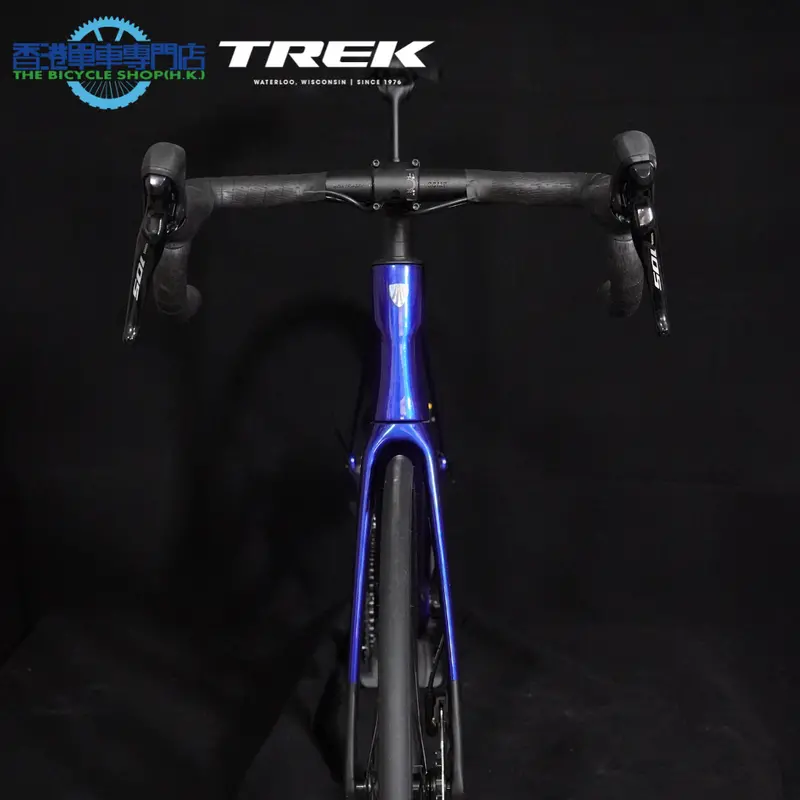

| *Handlebar | Size: XS Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width |
| Size: S, M Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width |
|
| Size: ML, L Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width |
|
| Size: XL Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width |
|
| Handlebar tape | Trek EcoTack, black |
| *Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length |
| Size: S, M Trek RCS Pro, -7-degree, 90 mm length |
|
| Size: ML, L Trek RCS Pro, -7-degree, 100 mm length |
|
| Size: XL Trek RCS Pro, -7-degree, 110 mm length |
|
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
