Description
Frameset

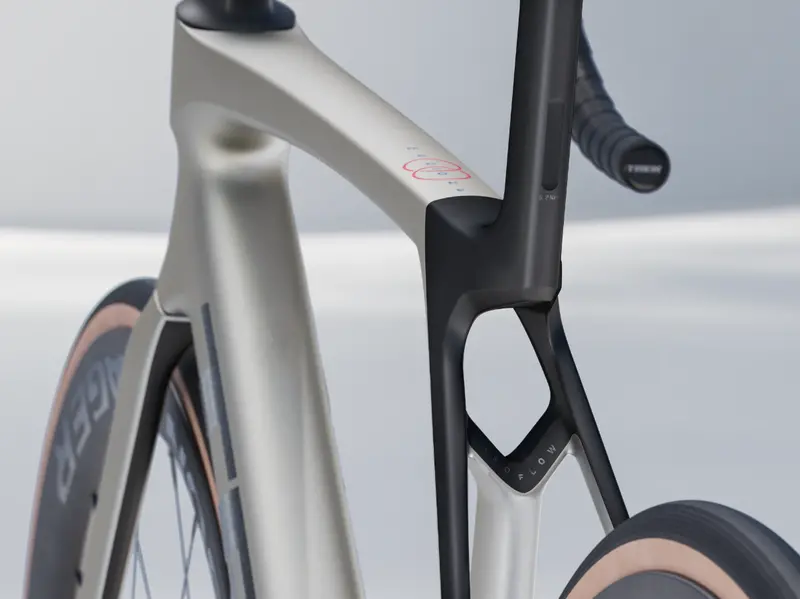

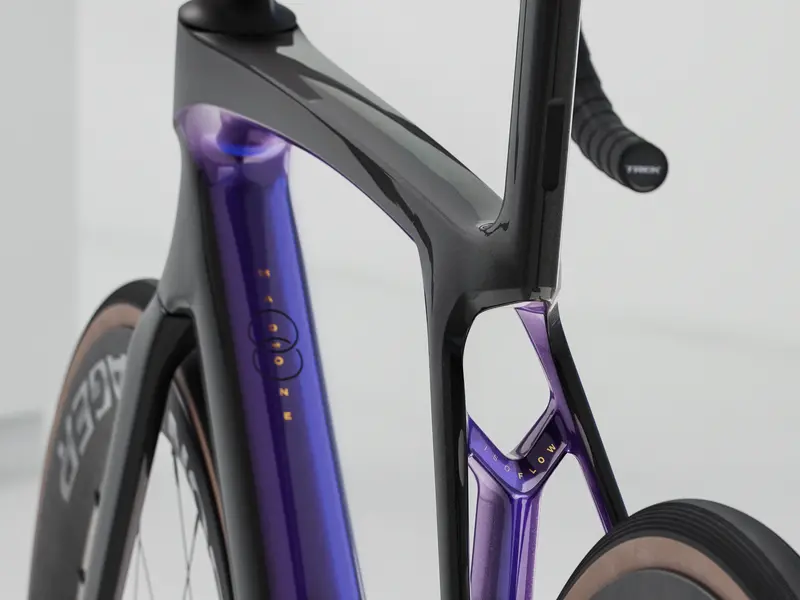

| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142×12 mm thru axle |
|---|---|
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
Weight
| Weight | ML – 7.88 kg / 17.38 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
Drivetrain
| Shifter | Shimano Ultegra R8170 Di2, 12-speed |
|---|---|
| Front derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| *Crank | Size: XS, S Shimano Ultegra R8100, 50/34, 165 mm length |
| Size: M Shimano Ultegra R8100, 50/34, 170 mm length |
|
| Size: ML, L Shimano Ultegra R8100, 50/34, 172.5 mm length |
|
| Size: XL Shimano Ultegra R8100, 50/34, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-34, 12-speed |
| Chain | Shimano Ultegra/XT M8100, 12-speed |
| Max. chainring size | 1x: 54T, 2x: 56/43 |
Wheels
| Wheel front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100×12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142×12 mm thru axle |
| Skewer front | Bontrager Switch chamfered thru axle, removable lever |
| Skewer rear | Bontrager Switch chamfered thru axle, removable lever |
| Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700×28 mm |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | 32 mm (as measured, see manual for details) |
Components
| *Saddle | Size: XS, S Bontrager Aeolus P2 Elite, 155 mm width |
|---|---|
| Size: M, ML, L, XL Bontrager Aeolus Elite, austenite rails, 145 mm width |
|
| *Seatpost | Size: XS, S, M Madone aero carbon seat post, 0 mm offset, short length |
| Size: ML, L, XL Madone aero carbon seat post, 0 mm offset, long length |
|

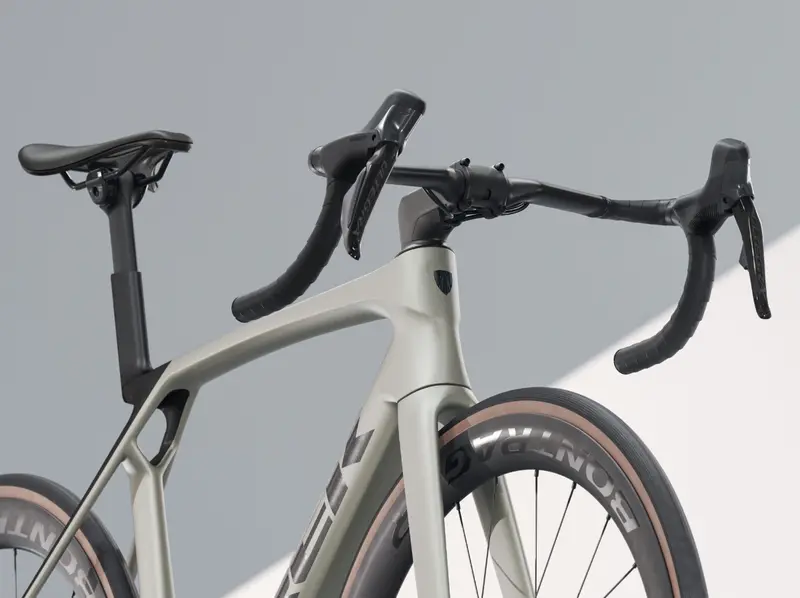

| *Handlebar | Size: XS Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drop width |
| Size: S Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drop width |
|
| Size: M, ML, L Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width |
|
| Size: XL Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width |
|
| *Stem | Size: XS Trek RCS Pro, -7-degree, 80 mm length |
| Size: S, M Trek RCS Pro, -7-degree, 90 mm length |
|
| Size: ML, L Trek RCS Pro, -7-degree, 100 mm length |
|
| Size: XL Trek RCS Pro, -7-degree, 110 mm length |
|
| Brake rotor | Shimano CL800, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 180 mm front, 160 mm rear |
