Trek X-Caliber 8 29-Inch Hardtail Mountain Bike

Description

Frameset

Frame

Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR

*Fork

Size: XS
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Lite, 80 mm travel Size: S
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Lite, 100 mm travel Size: M, ML, L, XL, XXL
RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel

Wheels

Hub front

Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle

Hub rear

Bontrager alloy, sealed bearing, 6-bolt, Shimano Micro Spline freehub, Boost141, 5 mm

*Rim

Size: XS, S
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve Size: M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve Size: M, ML, L, XL, XXL
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve

Spokes

14 g stainless steel, black

*Tyre

Size: XS, S
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5×2.35″ Size: M, ML, L, XL, XXL
Maxxis Ardent Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29×2.35″

Tyre part

Bontrager TLR sealant, 180 ml/6 oz

Rim strip

Bontrager TLR

Max tyre size

Frame: 27.5×2.80″ or 29×2.40″, Fork: See manufacturer

Drivetrain

Shifter

Shimano Deore M6100, 12-speed

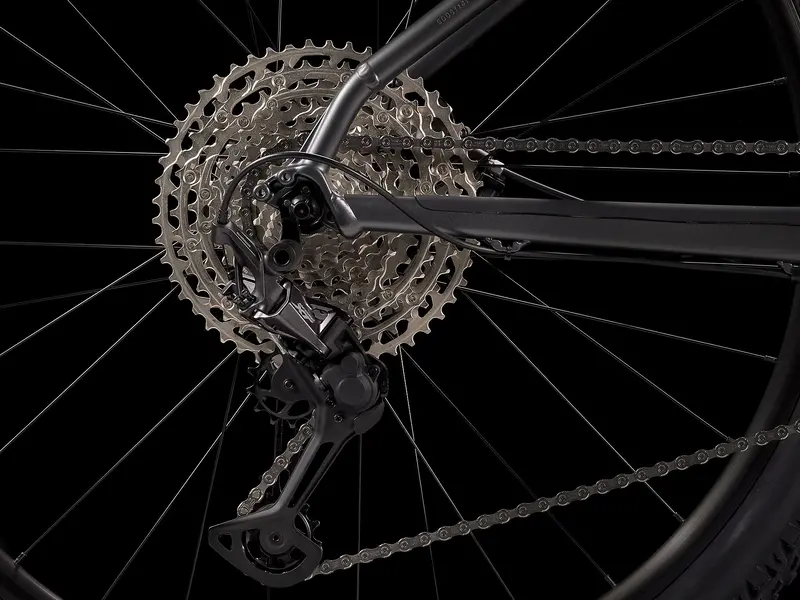

Rear derailleur

Shimano XT M8100, long cage

*Crank

Size: XS, S, M
Shimano MT511, 30T steel ring, 52 mm chainline, 170 mm length Size: ML, L, XL, XXL
Shimano MT511, 30T steel ring, 52 mm chainline, 175 mm length

*Bottom bracket

Size: XS, S, M, ML, L, XL, XXL
Shimano BB-MT501 BSA Size: XS, S, M, ML, L, XL, XXL
Shimano SM-BB52, 73 mm, threaded external bearing

Cassette

Shimano Deore M6100, 10-51, 12-speed

Chain

Shimano Deore M6100, 12-speed

Pedal

VP-536 nylon platform

Max. chainring size

1x: 32T

Components

Saddle

Bontrager Arvada, steel rails, 138 mm width

*Seatpost

Size: XS, S
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Size: M
Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length Size: ML, L, XL, XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length

*Handlebar

Size: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width Size: S, M
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width Size: ML, L, XL, XXL
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width

Grips

Bontrager XR Trail Comp, nylon lock-on

*Stem

Size: XS, S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length Size: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length Size: XL, XXL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

Head set

Semi-integrated, loose ball bearing, 1-1/8″ top, 1.5″ bottom

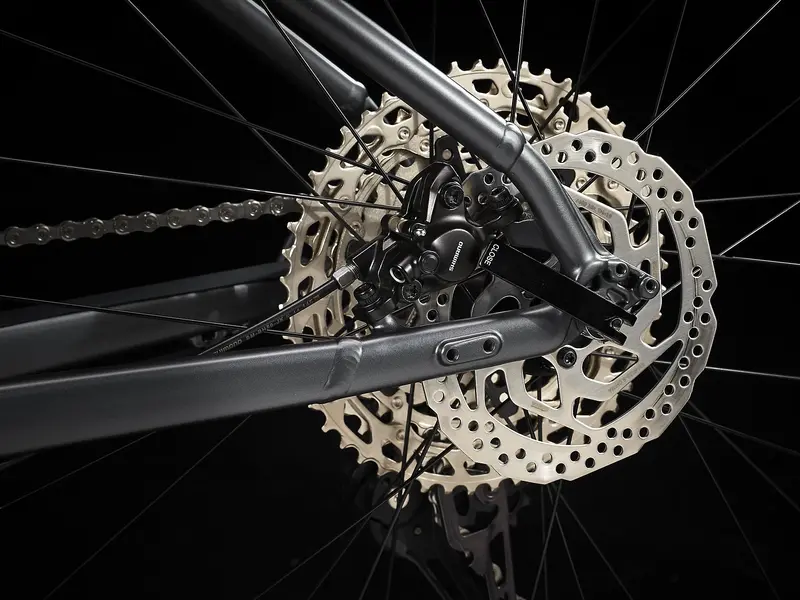

Brake

Shimano MT200 hydraulic disc

*Brake rotor

Size: XS, S, M, ML, L, XL, XXL
Shimano RT26, 6-bolt, 160 mm Size: L, XL, XXL
Shimano RT26, 6-bolt, 180 mm

Brake Set

Shimano MT200 hydraulic disc

Weight

Weight

M – 13.05 kg / 28.78 lbs

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
