Description
Frameset
| Frame | OCLV Mountain Carbon main frame & stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60mm travel |
|---|---|
| Fork | RockShox SID SL, DebonAir spring, Rush RL damper, 44mm offset, Boost110, 15mm Maxle Stealth, 100mm travel |

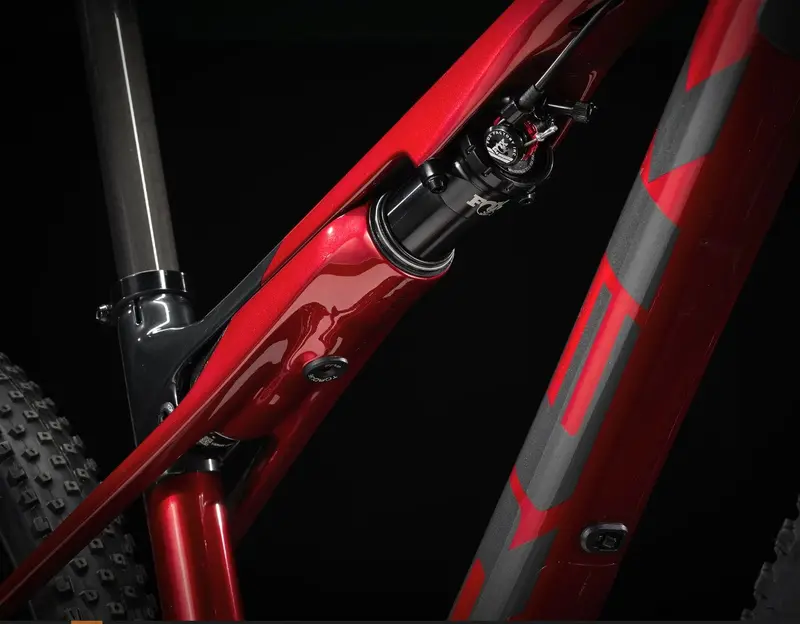

| Shock | Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235mm x 32.5mm |
| Suspension lever | Fox 2-position dual lockout lever |
| Max compatible fork travel | 120mm (531mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Kovee Pro 30 Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle |
|---|---|
| Wheel rear | Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, XD Driver, 6-bolt, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Kovee Pro 30, OCLV Mountain Carbon, Tubeless Ready |
| Tire | Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29×2.20” |
| Tire part | Bontrager TLR sealant, 6oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29×2.20″, Fork: See manufacturer |
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM GX Eagle AXS, 12 speed |
|---|---|

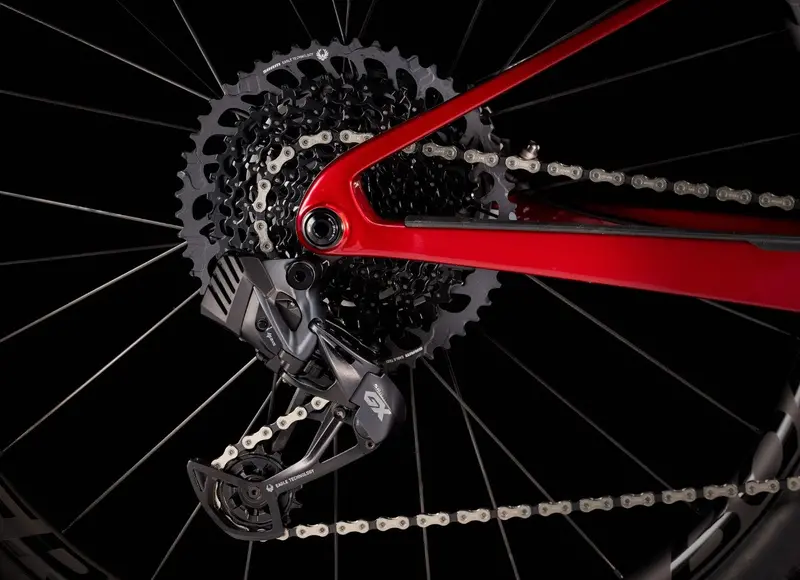

| Rear derailleur | SRAM GX Eagle AXS |
| *Crank | Size: S, M SRAM GX Eagle Carbon, DUB, 32T alloy ring, 52mm chainline, 170mm length |
| Size: M/L, L, XL SRAM GX Eagle Carbon, DUB, 32T alloy ring, 52mm chainline, 175mm length |
|
| Bottom bracket | SRAM DUB, 92mm, PressFit |
| Cassette | SRAM Eagle XG-1275, 10-52, 12 speed |
| Chain | SRAM GX Eagle, 12 speed |
| Max chainring size | 1x: 36T |
Components
| Saddle | Bontrager Verse Elite, austenite rails, 145mm width |
|---|---|
| *Seatpost | Size: S Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 330mm length |
| Size: M, M/L, L, XL Bontrager Pro, OCLV Carbon, 31.6mm, 0mm offset, 400mm length |
|
| *Handlebar/stem (integrated) | Size: S, M Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 70mm length |
| Size: M/L, L Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 80mm length |
|
| Size: XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0mm handlebar rise, 750mm width, -13 degree stem rise, 90mm length |
|
| Grips | ESI Chunky |
| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8” top, 1.5” bottom |
| Brake | SRAM Level TLM hydraulic disc |
| *Brake rotor | Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round-edge, 160mm |
| Size: S, M, M/L, L, XL SRAM CenterLine, 6-bolt, round edge, 180mm |
|
| Rotor size | Max brake rotor sizes – Frame: 160mm, Fork: see fork manufacturer |
Weight
| Weight | M – 10.65 kg / 23.48 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
